UVS-9000 Series Color Touch Screen UV-Vis Spectrophotometer

QUICK OVERVIEW

Product Code:18950
Brand:spectrophotometer

UVS-9000 Series


Share this product on social networks

Product Description :

the UV-Vis spectrophotometer is designed to meet high requirement for precision measurement in the research and productionof organic chemistry, biochemistry, medical testing, food testing, environmental protection, water testing industry,etc.

The latest ARM system and long optical system ensure high accuracy and good stability of the instrument.

They are the best choice of high quality spectrophotometer.

Features :

  1. 10.1 inches high resolution TFT colored capacitive touch screen and windows Graphic interface.
  2. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\Protein test, multi-wavelength test, etc
  3. In-house massive memory is capable of saving up to 1024M for test data & working curves.
  4. Supports USB & SD card storage. The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage.
  5. Socket type deuterium lamp and tungsten lamp can make lamps switching without optics debugging and easier to be replaced.
  6. Large room for samples can hold cuvettes of various specifications.
  7. Extensive accessories are optional, such as auto 8-cell holder, peltier/sipper system, reflection accessories, 21 CFR compliant software, etc.

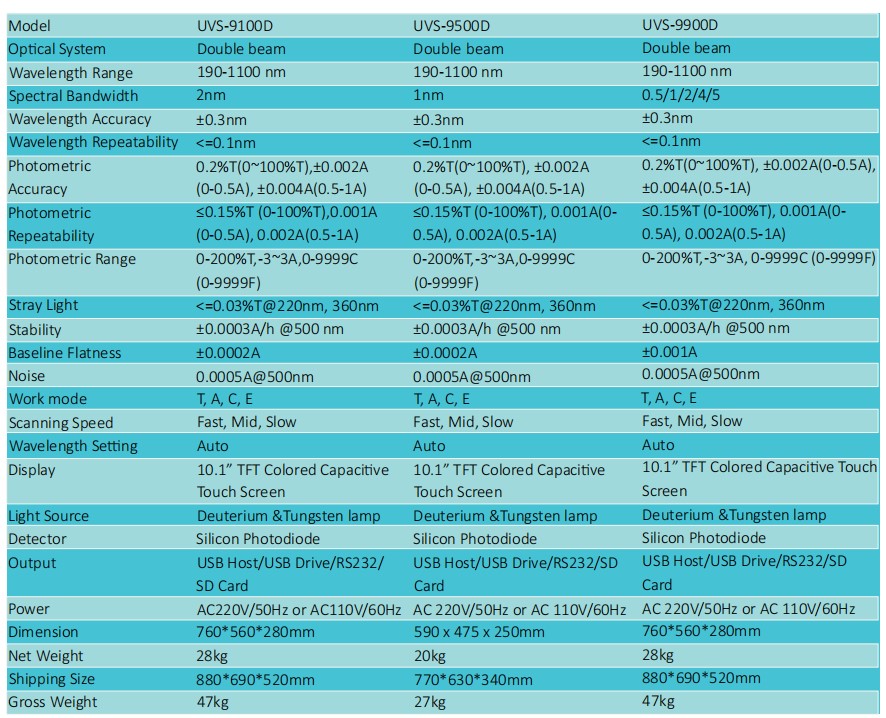

TECHNICAL SPECIFICATION

Model

UVS-9100S

UVS-9500SUVS-9900SUVS-9100DUVS-9500D

UVS-9900D

Optical System

Single beam

Double beam

Wavelength Range

190-1100 nm

Spectral Bandwidth

2nm

1nm0.5/1/2/4/52nm1nm

0.5/1/2/4/5

Wavelength Accuracy

±0.3nm

Wavelength Repeatability

<=0.1nm

Photometric Accuracy

0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)

Photometric Repeatability

≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)

Photometric Range

0-200%T, -3~3A, 0-9999C (0-9999F)

Stray Light

<=0.03%T@220nm, 360nm

Stability

±0.0005A/h@500nm

±0.0003A/h @500 nm
Baseline Flatness

±0.0002A

±0.001A

±0.0002A

±0.001A

Noise

0.0005A@500nm

Work mode

T, A, C, E

Scanning speed

Fast, Mid, Slow

Wavelength setting

Auto

Display

10.1″ TFT Colored Capacitive Touch Screen

Light Source

Imported Deuterium &Tungsten lamp

Detector

Imported Silicon Photodiode

Output

USB Host/USB Drive/RS232/SD Card

Power

AC 220V/50Hz or AC 110V/60Hz

Dimension

590 x 475 x 250mm

760*560*280mm590 x 475 x 250mm

760*560*280mm

Net Weight

20kg

28kg

20kg

28kg

Shipping Size

770*630*340mm

880*690*520mm

770*630*340mm

880*690*520mm

Gross Weight

27kg

47kg

27kg

47kg
