MPM50A

Free

Product Code: 1162
Brand: Multi Parameter

MPM50A

SKU: 1162 Categories: ,

Description

  • LCD display screen, 3.5 inches.
  • Multi-reading feature allows auto-read, timed-read and continuous-read.
  • Automatic/Manual temperature compensation ensures accurate results.
  • Auto-hold feature senses and locks the measurement endpoint.
  • Data capacity of up to 500 sets for each parameters (GLP-compliant).
  • Support for USB communication.
  • Auto-power off feature effectively extends the battery service life.
  • Reset feature automatically resumes all settings back to factory default options.
  • IP65 waterproof.

pH :

  • 1-5 points calibration with standard recognition.
  • Selectable pH buffer groups, including NIST, DIN, GB, USA.
  • Automatic electrode diagnosis with pH slope and offset display.

Ion :

  • 1-5 points calibration.
  • Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, ppb, etc.
  • Measurement modes are supported, include Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.
  • Over 10 methods are built-in, includeg F-, Cl-, Br-, I-, NO3-, BF4-, NH4+, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+ and etc.;

user-defined method is supported.

Conductivity :

  • 1-3 points calibration with standard recognition.
  • Settable parameters, including cell constant, temperature compensation coefficient, and TDS factor.
  • Temperature compensation type (none, linear, pure water).

DO :

  • Support for air-saturated water or zero oxygen calibration.
  • Auto barometric pressure compensation.
  • Manual Salinity Factor Correction.
  • Selectable pressure unit, including kPa, mbar, Torr, Atm.

.

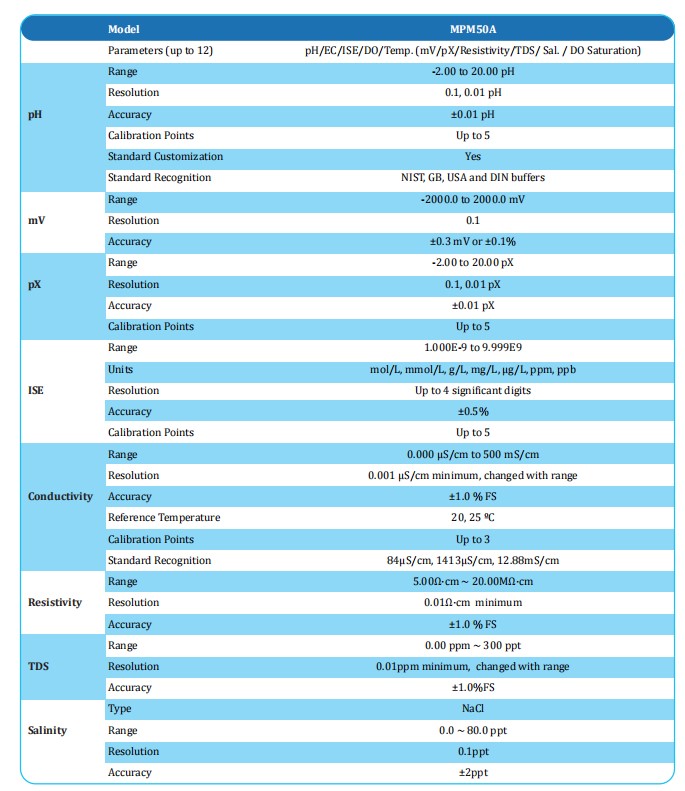

TECHNICAL SPECIFICATION



Model



MPM50A



Parameters (up to 12)

pH/EC/ISE/DO/Temp. (mV/pX/Resistivity/TDS/ Sal. / DO Saturation)



pH



Range

-2.00 to 20.00 pH

Resolution

0.1, 0.01 pH

accuracy

±0.01 pH

Calibration points

Up to 5

Standard Customization

Yes

Standard Recognition

NIST, GB, USA and DIN buffers

mV



Range

-2000.0 to 2000.0 mV

Resolution

0.1

Accuracy

±0.3 mV or ±0.1%

pX



Range

-2.00 to 20.00 pX

Resolution

0.1, 0.01 pX

Accuracy

±0.01 pX

Calibration Points

Up to 5

ISE



Range

1.000E-9 to 9.999E9

Units

mol/L, mmol/L, g/L, mg/L, μg/L, ppm, ppb

Resolution

Up to 4 significant digits

Calibration Points

±0.5%

Range

Up to 5

Conductivity



Range

0.00 μS/cm to 500 mS/cm

Resolution

0.01 μS/cm minimum, changed with range

Accuracy

±1.0 % FS

Reference Temperature

20, 25 ºC

Calibration Points

Up to 3

Standard Recognition

84μS/cm, 1413μS/cm, 12.88mS/cm

Resistivity



Range

5.00Ω·cm ~ 20.00MΩ·cm

Resolution

0.01Ω·cm minimum

Accuracy

±1.0 % FS

TDS



Range

ppm ~ 300 ppt

 Resolution

0.01ppm minimum, changed with range

Accuracy

±1.0%FS

Salinity



Type

NaCl

 Range

0.0 ~ 80.0 ppt

Resolution

0.1ppt

 Accuracy

±2ppt

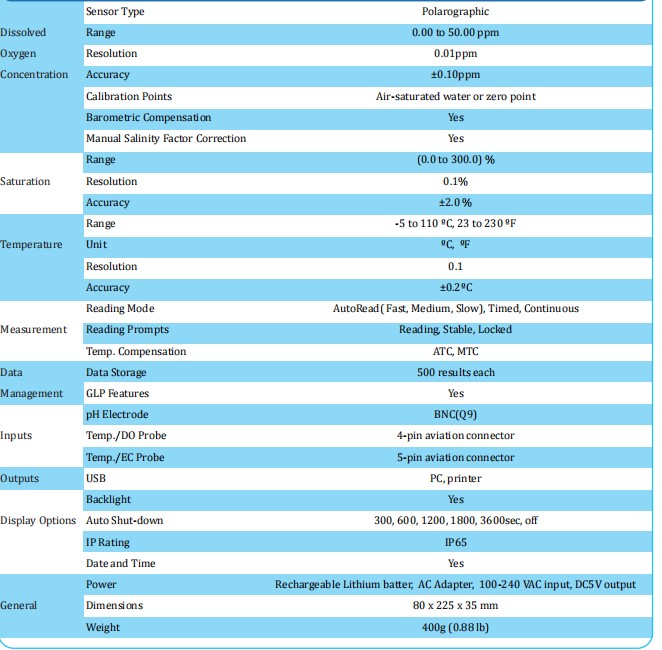

Dissolved Oxygen Concentration



Sensor Type

Polarographic

 Range

0.00 to 50.00 ppm

 Resolution

0.01ppm

Accuracy

±0.10ppm

Calibration Points

Air-saturated water or zero point

Barometric Compensation

yes

Manual Salinity Factor Correction

yes

Saturation



Range

(0.0 to 300.0) %

Resolution Accuracy

0.1%

Range

±2.0 %

Temperature



Range

-5 to 110 ºC, 23 to 230 ºF

Unit

ºC, ºF

 Resolution

0.1



 Accuracy

±0.2ºC

Measurement



ReadingMode

AutoRead( Fast, Medium, Slow), Timed, Continuous

ReadingPrompts

Reading, Stable, Locked

Temp. Compensation

ATC, MTC

Data Management



Data Storage

500 results each

GLP Features

Yes

Inputs



pHElectrode

BNC(Q9)

Temp./DO Probe

4-pin aviation connector

 Temp./ECProbe

5-pin aviation connector

Outputs



USB

PC, printer

Display Options



Backlight Yes
Auto Shut-down

300, 600, 1200, 1800, 3600sec, off

IP Rating

IP65

DateandTime

Yes

General



Power

Rechargeable Lithium batter, AC Adapter, 100-240 VAC input, DC5V output

Dimensions

80 x 225 x 35 mm

Weight

400g (0.88 lb)
